Temank IP65 400W Smart Grid Inverter GTB-400 With LED Display
Temank IP65 400W Smart Grid Inverter GTB-400 With LED Display
Temank IP65 400W Smart Grid Inverter GTB-400 With LED Display
Temank IP65 400W Smart Grid Inverter GTB-400 With LED Display

Temank IP65 400W Smart Grid Inverter GTB-400 With LED Display

Regular price
$159.99$159.99
Sale price
$129.99$129.99
Unit price
per

  • Brand: Temank
  • Product Model: GTB-400
  • Type: Smart Grid Inverter
  • Waterproof: IP65
  • Technology: MPPT

Temank IP65 400W Smart Grid Inverter GTB-400 Parameter

Model

GTB-400

Maximum input power

400Watt

Peak power tracking voltage

22-50V

Min / max star ting voltage

22-55V

Maximum DC shor t-circuit

20A

Maximum input operating current

13A

Output Data

@120V

@230V

Peak power output

400Watt

400Watt

Rated output power

400Watt

400Watt

Rated output current

3.3A

1.7A

Rated voltage range

80-160VAC

180-260VAC

Rated frequency range

48-51/58-61Hz

48-51/58-61Hz

Power Factor

>99%

>99%

Max unit per branch circuit

6pcs(Single-phase)

12pcs(Single-phase)

Output Eifficiency

@120V

@230V

Static MPPT efficiency

99.5%

99.5%

Maximum output efficiency

95%

95%

Night time power consumption

<1W

<1W

THD

<5%

<5%

Exterior & Feature



Ambient temperature range

-40°C to +60°C

Dimensions (L × W × H)

253mm×200mm×40mm

Weight

1.5kg

Waterproof rating

IP65

Cooling

Self-cooling

Communication Mode

WiFi mode

Power transmission mode

Reverse transfer,load priority

Monitoring System

Mobile APP, PC browser

Electromagnetic Compatibility

EN50081.par t1 EN50082.Par ty1

Grid disturbance

EN61000-3-2 Safety EN62109

Grid detection

CE.EN-50438

Cer tificate

CE



LED Display

  1. Red light 3 second---Red LED light 3 second
  2. Green flash fast---MPPT searching;
  3. Green flash slow---MPPT + searching;
  4. Red flash slow---MPPT - searching;
  5. Green lights on 3s and off 0.5s---MPPT locked;
  6. Red light steady
    a)  Islanding protection
    b)  Over-temperature protection
    c)  Over/low AC voltage protection;
    d)Over / low DC voltage protection; e.Fault Remarks:LED flashing in the process of being working condition:inverters connected to AC & DC sides→Red LED light 3 second→Green LED flash fast(MPPTsearching)→Green LED flash slow(MPPT + searching)/Red LED flash slow (MPPT - searching)/green LED lights on 3s and off 0.5s (MPPT locked) .

Structure of Solar power system

Temank, IP65, 400W, Smart Grid Inverter, GTB-400, LED Display

Installation Guide

Step 1 Installation for fixed the inverter on the PV holder with the screws attached is as following:

Temank, waterproof IP65, 400W, Smart Grid Inverter, LED Display

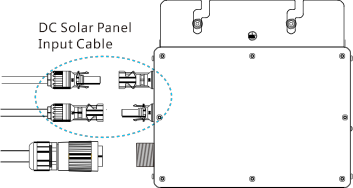

Step 2 Connect the two DC terminal of the PV to the inverter, positive to positive, negative to negative. Show below:

Temank, IP65, 400W, Smart Grid Inverter, GTB-400

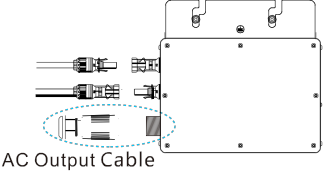

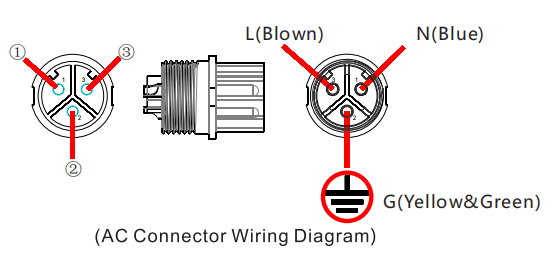

Step 3 Open the waterproof cap on AC output side of the micro inverter, then plug to AC power line. Show below:

 Temank, IP65, 400W, Smart Grid Inverter

Temank, IP65, 400W, Smart Grid Inverter, GTB-400

Step 4 Plug the AC output line to main AC cable;

Step 5 Repeat the first step to the third step to complete the installation of micro inver ters;

Step 6 Finally, please connect the AC main cable to the utility grid.

There is detail information about Temank IP65 400W Smart Grid Inverter GTB-400 With LED Display as below:

Temank IP65 400W Smart Grid Inverter GTB-400 With LED Display Manual
