Temank EPever 100A MPPT Solar Charge Controller 150V Max PV Input 12V 24V 36V 48V Auto Solar Regulator LCD Display with Lithium Battery And Lead Acid Battery Feature:
- Product Brand: Temank
- Product Model: Tracer10415AN
- Technology Type: MPPT
- Support Battery Type: Lead-acid battery and Lithium battery
- CE certfication(LVD EN/IEC62109,EMC EN61000-6-1/3)
- High quality & low failure rate components of ST and Infineon to ensure the product’s life
- Advanced MPPT technology & ultra-fast tracking speed is up to 99.5% guaranteed
- Maximum DC/DC transfer efficiency is as high as 98.7%
- Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
- The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
- The wider range of MPP operating voltage
- Auto control system to limit the charging power & current go over the rated value
- Support 4 charging options: Sealed, Gel, Flooded and User
- Battery temperature compensation function
- Real-time energy recording and statistical function
- Automatic over-temperature power reduction function
- Hundred percent full load operation in working environment temperature range within charging & discharging
- Support up to 8 units in parallel to expand system
- Load relay control external load switch signal to realize diversified load work modes
- The first and the second disconnection of load control, contain two relay’s contact

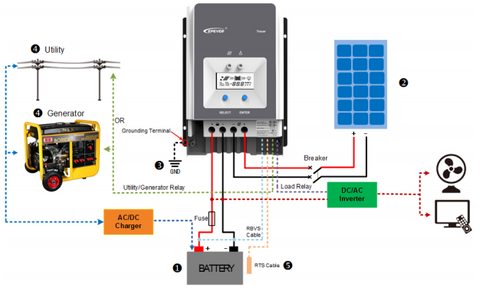

- Auto-control of utility and generator relay design
- Utility or generator auto-control relays make it easy to compose the hybrid power system
- The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage

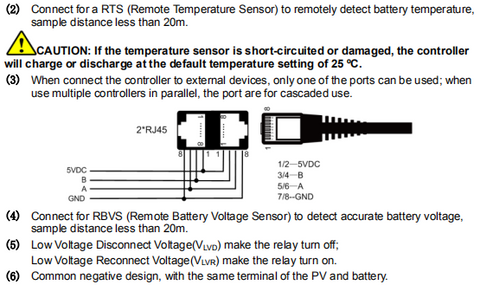

- Isolated RS-485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
- To monitor or set the parameters by using the phone Apps or PC software
Specifications:

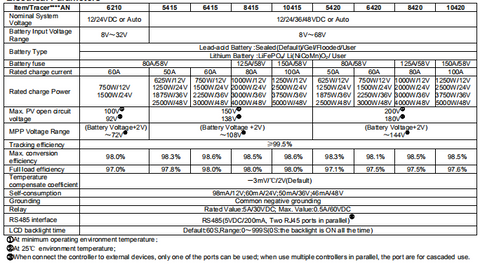

Electrical Parameter

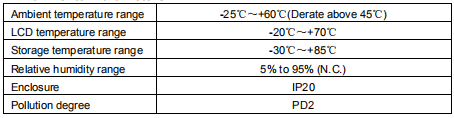

Environmental Parameter

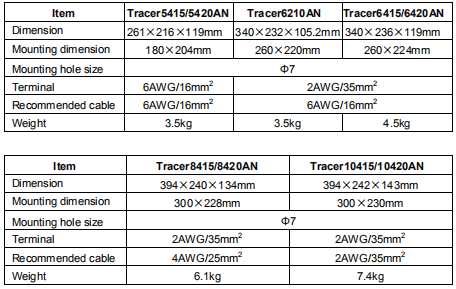

Mechanical Parameters
Certification

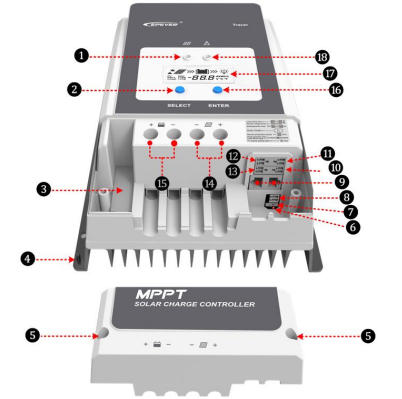

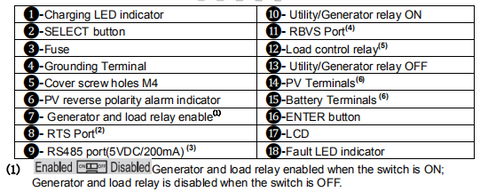

Characteristics

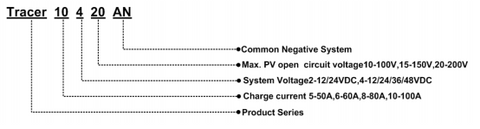

Designations of Controller Models
One controller：

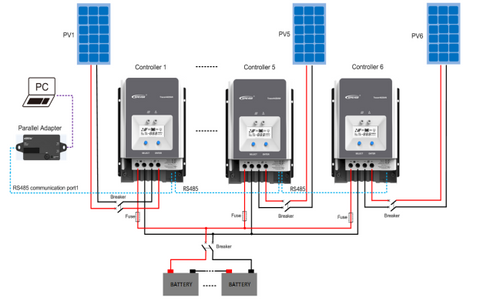

Multiple controllers
There is detail information about Temank EPever 100A MPPT Solar Charge Controller 150V Max PV Input 12V 24V 36V 48V Auto Solar Regulator LCD Display with Lithium Battery And Lead Acid Battery as below:
