- Brand: Temank
- Product Model: GTB-1200
- Type: Smart Grid Inverter
- Waterproof: IP65
- Communication Mode: WiFi mode
- Monitoring System: Mobile APP, PC browser
Temank IP65 1200W Smart Grid Inverter GTB-1200 Parameter
|
Model |
GTB-1200 |
|
|
Maximum input power |
1200Watt |
|
|
Peak power tracking voltage |
22-50V |
|
|
Min / max star ting voltage |
22-55V |
|
|
Maximum DC shor t-circuit |
60A |
|
|
Maximum input operating current |
54.5A |
|
|
Output Data |
@120V |
@230V |
|
Peak power output |
1200Watt |
1200Watt |
|
Rated output power |
1200Watt |
1200Watt |
|
Rated output current |
10A |
5.2A |
|
Rated voltage range |
80-160VAC |
180-260VAC |
|
Rated frequency range |
48-51/58-61Hz |
48-51/58-61Hz |
|
Power Factor |
>99% |
>99% |
|
Max unit per branch circuit |
3pcs（Single-phase） |
5pcs（Single-phase） |
|
Output Eifficiency |
@120V |
@230V |
|
Static MPPT efficiency |
99.5% |
99.5% |
|
Maximum output efficiency |
95% |
95% |
|
Night time power consumption |
<1W |
<1W |
|
THD |
<5% |
<5% |
|
Exterior & Feature |
|
|
|
Ambient temperature range |
-40°C to +60°C |
|
|
Dimensions (L × W × H) |
365mm×300mm×40mm |
|
|
Weight |
2.81kg |
|
|
Waterproof rating |
IP65 |
|
|
Cooling |
Self-cooling |
|
|
Communication Mode |
WiFi mode |
|
|
Power transmission mode |
Reverse transfer，load priority |
|
|
Monitoring System |
Mobile APP, PC browser |
|
|
Electromagnetic Compatibility |
EN50081.par t1 EN50082.Par ty1 |
|
|
Grid disturbance |
EN61000-3-2 Safety EN62109 |
|
|
Grid detection |
CE EN-50438 |
|
|
Cer tificate |
CE |
|
LED Display
- Red light 3 second---Red LED light 3 second
- Green flash fast---MPPT searching;
- Green flash slow---MPPT + searching;
- Red flash slow---MPPT - searching;
- Green lights on 3s and off 0.5s---MPPT locked;
- Red light steady
a) Islanding protection
b) Over-temperature protection
c) Over/low AC voltage protection;
d)Over / low DC voltage protection; e.Fault Remarks:LED flashing in the process of being working condition:inverters connected to AC & DC sides→Red LED light 3 second→Green LED flash fast(MPPTsearching)→Green LED flash slow(MPPT + searching)/Red LED flash slow (MPPT - searching)/green LED lights on 3s and off 0.5s (MPPT locked) .

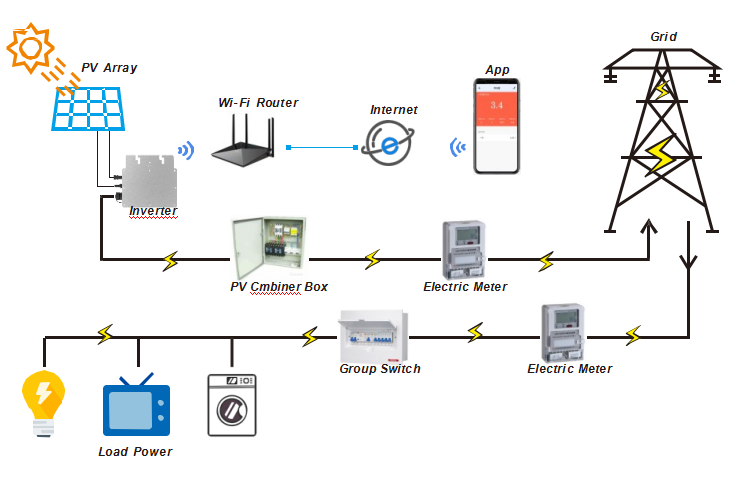

Structure of Solar power system
Installation Guide
Step 1 Installation for fixed the inverter on the PV holder with the screws attached is as following:
Step 2 Connect the two DC terminal of the PV to the inverter, positive to positive, negative to negative. Show below:
Step 3 Open the waterproof cap on AC output side of the micro inverter, then plug to AC power line. Show below:
Step 4 Plug the AC output line to main AC cable;
Step 5 Repeat the first step to the third step to complete the installation of micro inver ters;
Step 6 Finally, please connect the AC main cable to the utility grid.
There is detail information about Temank IP65 60A 1200W Smart Grid Inverter GTB-1200 With WiFi as below:
Temank IP65 60A 1200W Smart Grid Inverter GTB-1200 With WiFi
